Structural Design pattern — [Notes]

· Structural Design pattern
· Adapter design pattern
∘ When?
· Flyweight design pattern
∘ Types of Entities
∘ Applying flyweight pattern
· Flyweight vs Prototype
· Decorator Pattern

Structural Design pattern

How are classes structured internally

Memory optimization wrt structure

Handling complex scenario in classes

How are classes going to interact with other classes

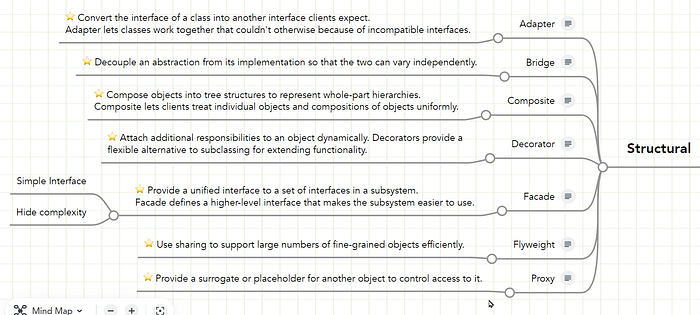

Source — https://www.mindmeister.com/263325254/design-patterns?fullscreen=1

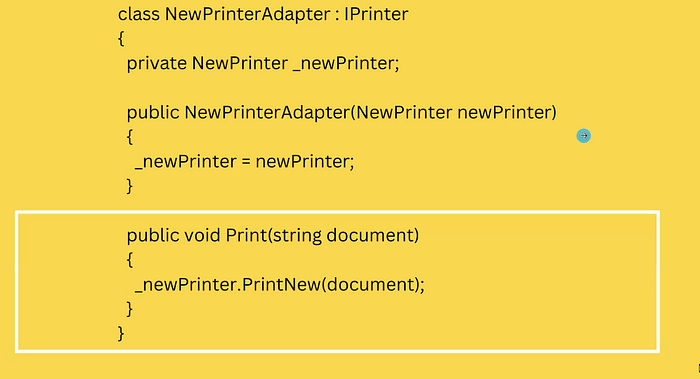

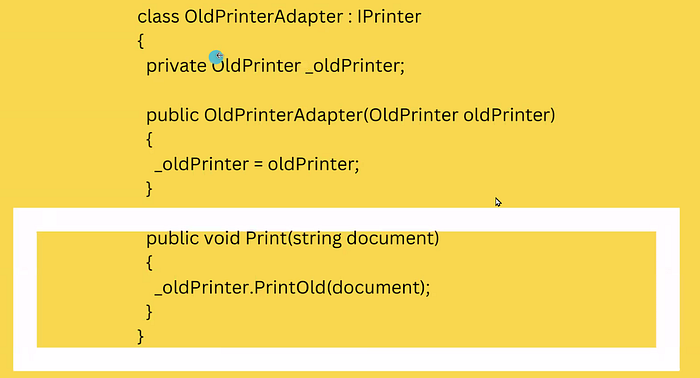

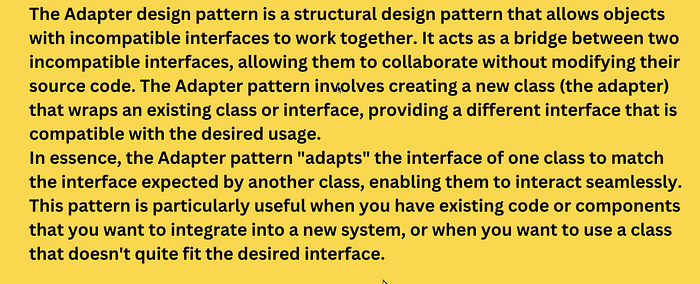

Adapter design pattern

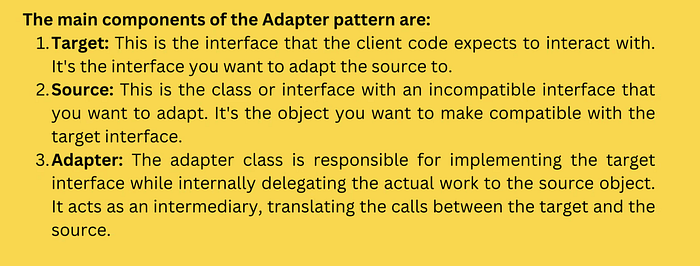

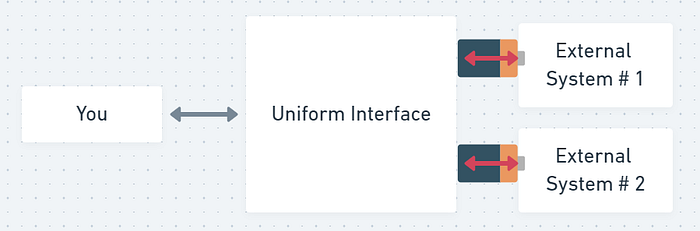

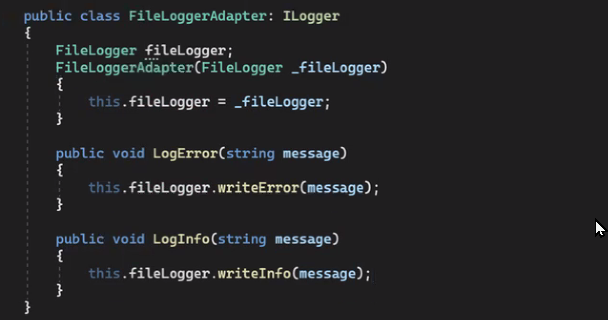

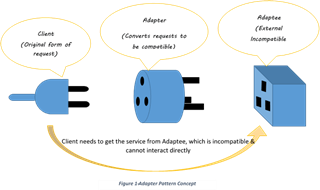

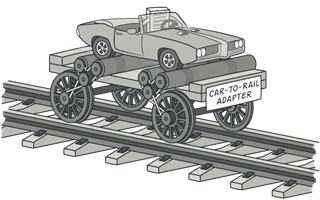

We use an adapter to provide an uniform interface to a diverse set of external entities

Source — https://itsnishantmishra.medium.com/adapter-design-pattern-c-1cc8327f45d5

https://refactoring.guru/design-patterns/adapter

When?

• We connect with third party APIs, SDKs, packages
• We might want to change the APIs in future [Some other API provider]
• If I have to do lot of change in my internal codebase. [PhonePe to Yesbank may need to be changed to some other bank]

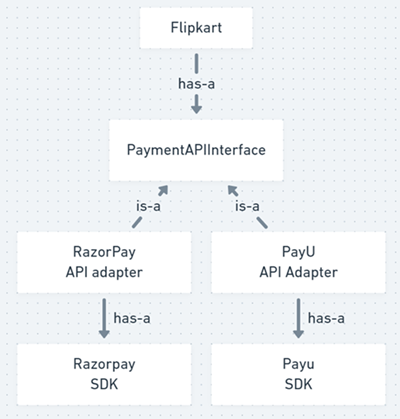

If you have to connect to an external System (API, package), Build a uniform way in which you can connect to those system.

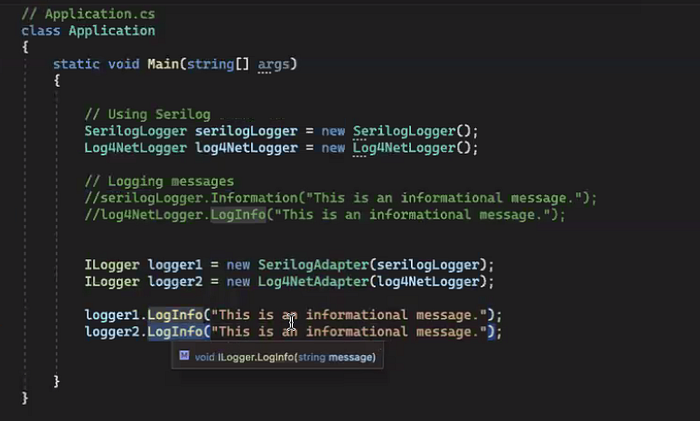

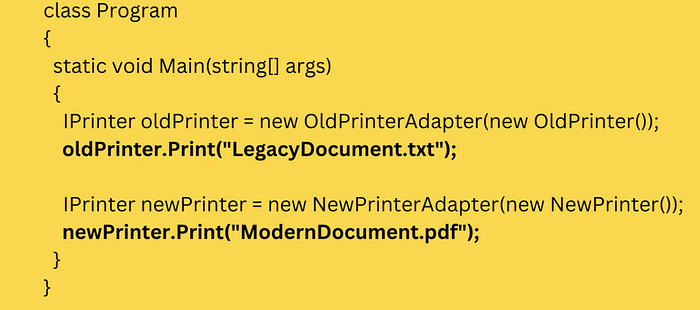

Examples -

Flyweight design pattern

Flyweight is a structural design pattern that lets you fit more objects into the available amount of RAM by sharing common parts of state between multiple objects instead of keeping all of the data in each object. [Source]

public class Bullet {
  float Caliber,
  int damange,
  float cur_speed,
  int user_id,
  enum direction,
  float[] position,
  int weight,
  jImage/Skin
}

Types of Entities

1. Intrinsic Entities — Entities whose value will remain the same across every instance
2. Extrinsic Entities — Entities whose value will keep on change.

public class Bullet {
  float Caliber,  //Intrinsic
  int damange,    //extrinsic
  float cur_speed, //extrinsic
  int user_id,  //extrinsic
  enum direction,  //extrinsic
  float[] position,  //extrinsic
  int weight, //Intrinsic
  jImage/Skin //Intrinsic
}

Applying flyweight pattern

//All intrintic properties
Bullet{
  Caliber,
  Weight,
}

//All extrintic properties
//Immutable
FlyingBullet {
  damage,
  cur_speed,
  owner,
  direction
}

//Complete bullet - Intrinsic + extrintic properties
Flying Bullet {
  damage,
  cur_speed,
  owner,
  direction
  Bullet bullet //all intrinsic properties refer to same object
}

Flyweight vs Prototype

Prototype

1. Only 1 class
2. we’ll fill some fields in advance
3. n prototype the common properties need not be immutable

Flyweight

1. 2 classes
2. 1(one) class will be immutable
3. save memory

Decorator Pattern / Wrapper pattern

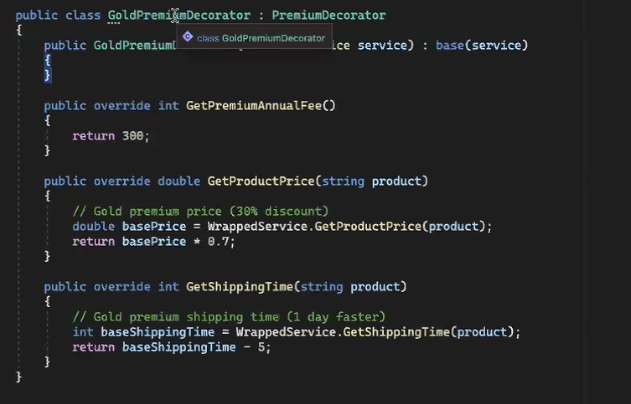

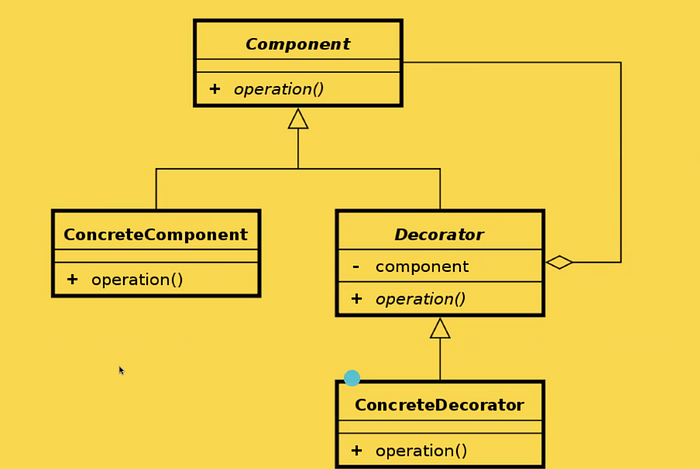

Decorator is a structural design pattern that lets you attach new behaviors to objects by placing these objects inside special wrapper objects that contain the behaviors. Source

Decorator pattern is useful when you want to add new functionalities or responsibilities to individual objects without changing the structure or behaviour of the object

Source — https://www.scaler.com/topics/design-patterns/decorator-design-pattern/

• Mix and match different options instead of having different class implementation
• Single responsibility
• We have a type of object. We might want to add things to it (decorate the object with some things)

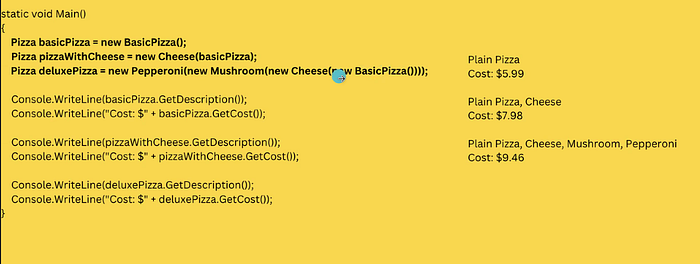

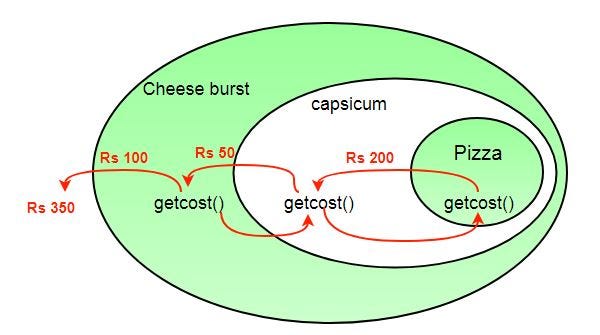

Pizza final = Mushroom(Oregano(Cheese(Paneer(Pizza))))

final.order() => total cost and list of items in the pizza

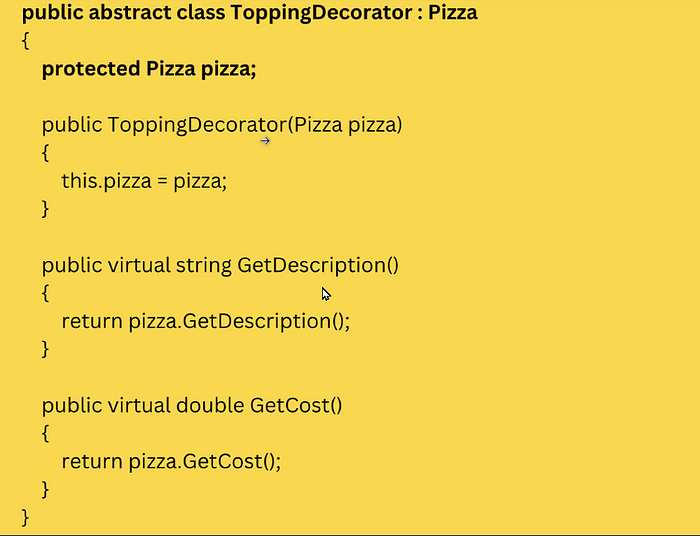

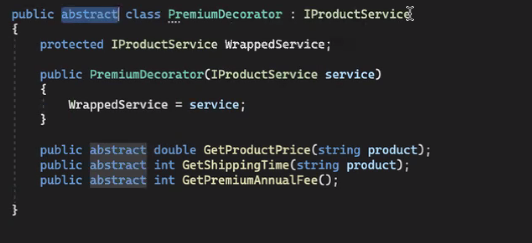

• decorator class is always a abstract class
• has a paramteterized constructor that takes the base class as input

Source — https://www.geeksforgeeks.org/the-decorator-pattern-set-2-introduction-and-design/

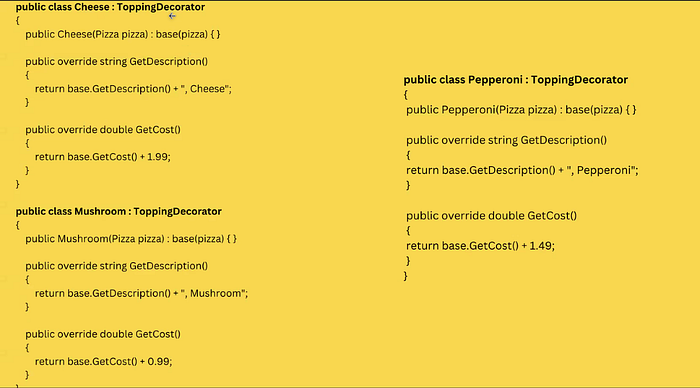

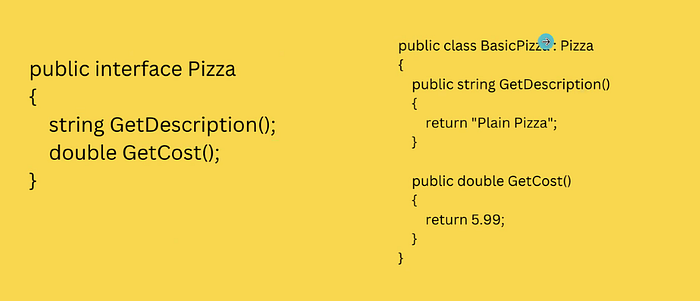

public interface Pizza {
  getTotalCost();
  getItems();
}



class Paneer extends Pizza {
  Pizza p;

  Paneer(Pizza pizza){
    this.p = pizza
  }

  @Override
  public int getTotalCost(){
    return this.p.getTotalCost()+paneer_cost;
  }

  getItems(){
    return p.getItems() + "Paneer";
  }

}



class Cheese extends Pizza {
  Pizza p;

  Cheese(Pizza pizza){
    this.p = pizza
  }

  @Override
  public int getTotalCost(){
    return this.p.getTotalCost()+cheese_cost;
  }

  getItems(){
    return p.getItems() + "Cheese";
  }

}

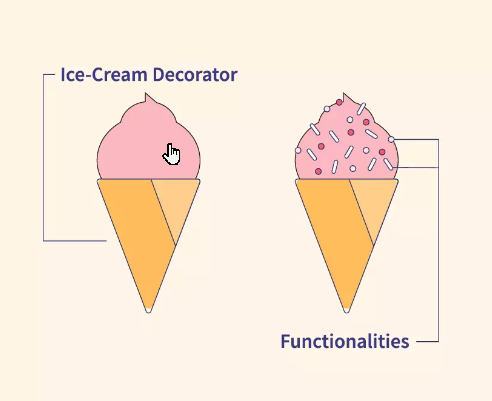

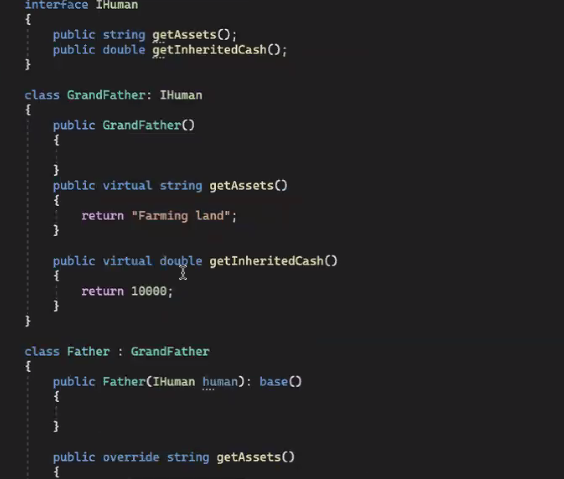

Real life examples of decorator pattern

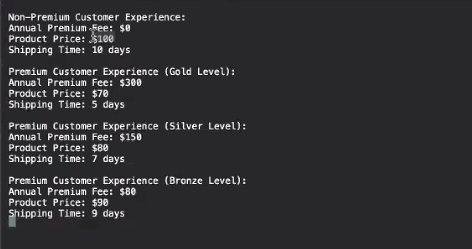

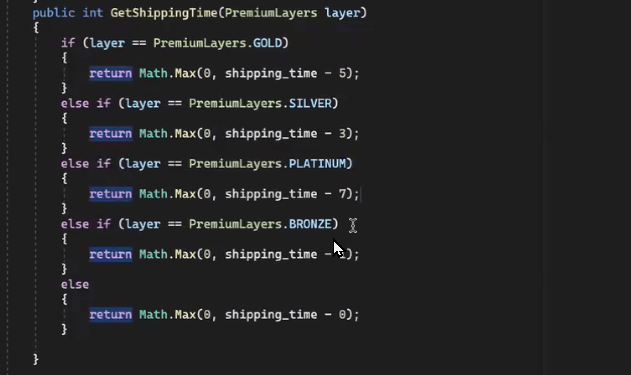

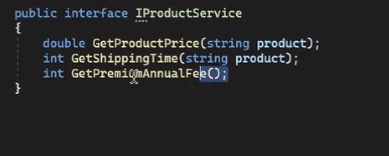

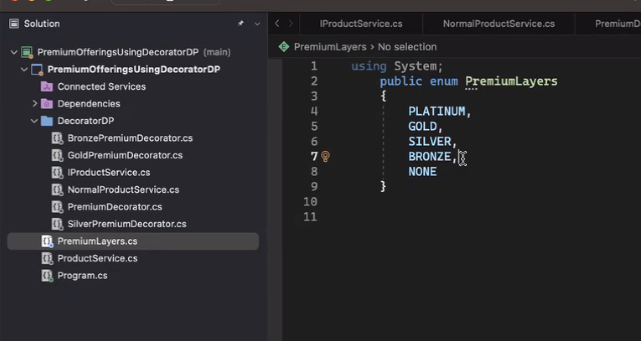

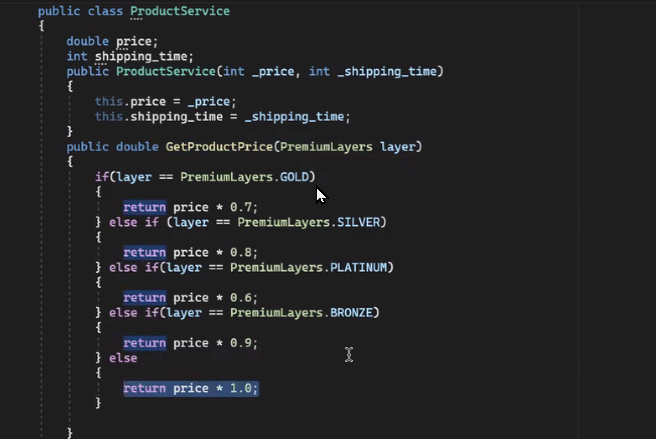

Trivial example (Flat version) —

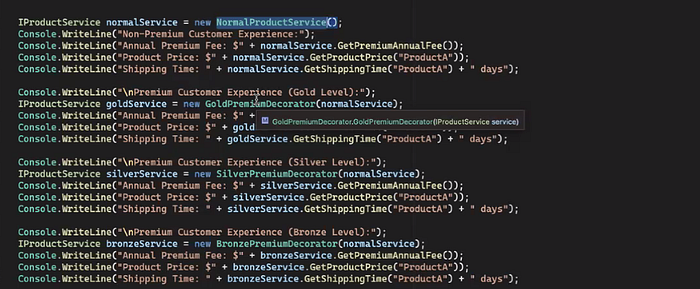

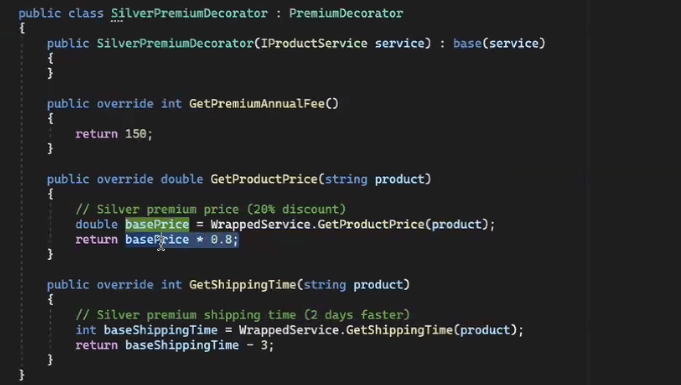

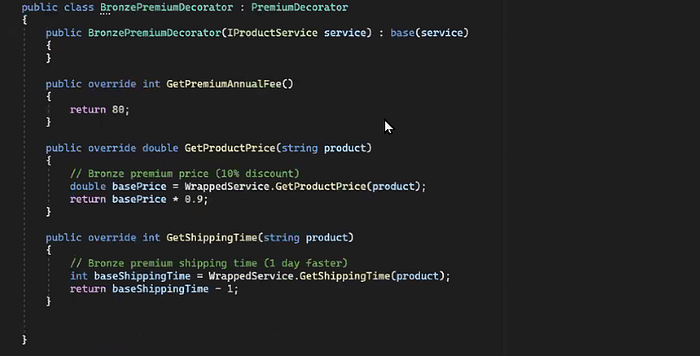

With Decorator pattern
